STM32F103C8T6 MCU 32-Bit ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 48-Pin LQFP Integrated Circuit IC Chip

Product Categories
Shenzhen Chuanlan Electronics Ltd
Contact Now

STM32F103C8T6 MCU 32-Bit ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 48-Pin LQFP Integrated Circuit IC Chip

  • 1
  • 2

Brand Name : STM

Model Number : STM32F103C8T6

Place of Origin : Malaysia

MOQ : 1pcs

Price : Negotiated

Payment Terms : T/T,Escrow

Supply Ability : 30000pcs

Delivery Time : in stock

Packaging Details : 250/TRAY

Moisture Sensitivity Level (MSL) : 3 (168 Hours)

RoHS : Yes

Date code : 23+

Ships from : Shenzhen,CN

Contact Now

STM32F103C8T6 MCU 32-bit ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 48-Pin LQFP Integrated Circuit IC Chip

Crucial to any electronic system is this STM32F103C8T6 microcontroller from STMicroelectronics, a mini computer that can be programmed to do whatever you want. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 72 MHz. Its ADC resolution is 12/12. Its flash program memory is 64KB. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2|2.4 V, while its maximum is 3.6 V. This is a 32 bit processor. This device is based on the ARM Cortex M3 core architecture.

Here is the general description:

ECCN (US) EAR99
Part Status Active
HTS 8542.31.00.01
Automotive No
PPAP No
Family Name STM32F
Instruction Set Architecture RISC
Device Core ARM Cortex M3
Core Architecture ARM
Maximum CPU Frequency (MHz) 72
Maximum Clock Rate (MHz) 72
Data Bus Width (bit) 32
Program Memory Type Flash
Program Memory Size 64KB
RAM Size 20KB
Programmability Yes
Interface Type CAN/I2C/SPI/USART/USB
Number of I/Os 37
No. of Timers 4
PWM 1
Number of ADCs Dual
ADC Channels 10/10
ADC Resolution (bit) 12/10
USART 3
UART 0
USB 1
SPI 2
I2C 2
I2S 0
CAN 1
Ethernet 0
Watchdog 2
Parallel Master Port No
Real Time Clock Yes
Special Features CAN Controller
Minimum Operating Supply Voltage (V) 2
Typical Operating Supply Voltage (V) 2.5|3.3
Maximum Operating Supply Voltage (V) 3.6
Maximum Power Dissipation (mW) 363
Minimum Operating Temperature -40℃
Maximum Operating Temperature 85℃
Supplier Temperature Grade Industrial
Packaging Tray
Mounting Surface Mount
Package Height 1.4
Package Width 7
Package Length 7
PCB changed 48
Supplier Package LQFP
Pin Count 48
Lead Shape Gull-wing

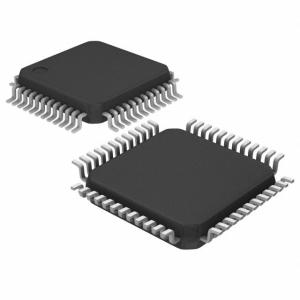

Product pictures:

STM32F103C8T6 MCU 32-Bit ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 48-Pin LQFP Integrated Circuit IC Chip

STM32F103C8T6 MCU 32-Bit ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 48-Pin LQFP Integrated Circuit IC Chip
